SAGARANTEN
Shelter CKD Sagaranten
Tanggal Project
Jenis Project
Lokasi
Type Shelter
End User
Dimensi(Outter)
Base Frame
: 23 Juli 2025
: RADIO TELEKOMUNIKASI
: Sagaranten Sukabumi – Jawa Barat
: SHELTER CKD TYPE SSR – 2.5 x 2 x 3 – BFP
: PT.PLN(persero) UID Jawa Barat
: P.2500 x L.2000 x T.3000mm
: IWF 150.5.7mm, Pedestal HBeam 150mm

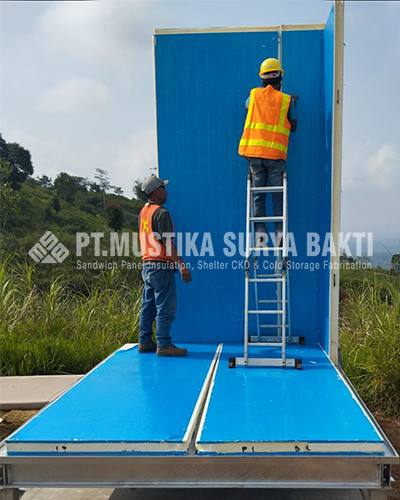

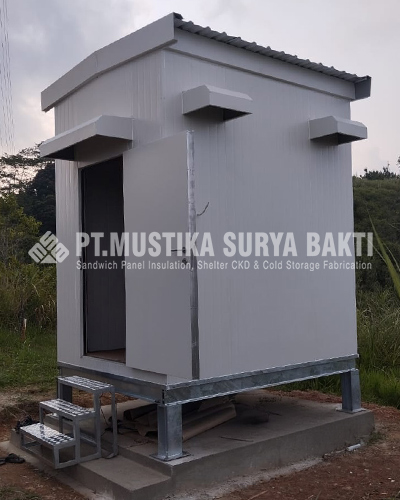

Project Shelter CKD Sagaranten adalah Produk Kami yang di gunakan oleh PT.PLN(Persero) UID Jawa Barat yang di tempatkan di Saraganten, Sukabumi, Jawa Barat yang difungsikan sebagai penempatan perangkat Radio Telekomunikasi (handie Talkie) oleh petugas PLN di lapangan.
GENERAL SPESIFIKASI SHELTER CKD SAGARANTEN
| NAMA ITEM | KETERANGAN |
|---|---|
|
SHELTER TYPE |
SHELTER CKD TYPE SSR – 2.5 x 2 x 3 – BFP |
|
JENIS RUANGAN |
Double Room |
|
UKURAN RUANGAN |
Outter : P.2650 x L.2000 x T.3000mm Inner : P.2500 x L.2150 x T.3150mm |
|
WALL & ROOF PANEL INSULATION |
Sandwich Panel Insulation, Tebal 75m Kulit Luar & Dalam ,Pre Painted Galvanized tebal 0.45mm, warna Rabbit White/Broken White Insulation, Rigid Polyurthane Foam Density 40 ~ 45Kg/m³ Surface Profile, Corugated Interval 80mm, Depth 3mm Pelindung Anti Gores, Blue Protective Film |
|
FLOOR PANEL INSULATION |

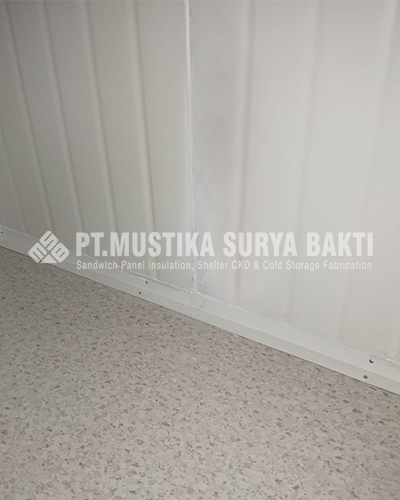

Sandwich Panel Insulation, Tebal 75m Kulit Luar & Dalam ,Pre Painted Galvanized tebal 0.45mm, warna Rabbit White/Broken White Insulation, Rigid Polyurthane Foam Density 40 ~ 45Kg/m³ Surface Profile, Flat Pelindung Anti Gores, Blue Protective Film Finishing Lantai, Vinyl Tile 300 x 300mm, Merk Maxwell |
|
PINTU |
Model Pintu, Double Swing Door Dimensi Daun Pintu, P.2000 x L.1000 x T.40mm Kulit Bagian Luar& Dalam , Pre Painted Galvanized tebal 0,45mm, Warna Rabbit White/Broken White. Pelindung Anti Gores, Blue Protective Film. Engsel,Stainless Steel Model Kupu – Kupu. Handle, Stainless Steel, Merk Solid atau Setara |
|
SISTEM SAMBUNGAN |
Wall Panel ke Wall Panel Insulation, Rotary Metal Cam Lock Roof Panel ke Roof Panel, Rotary Metal Cam Lock Wall Panel Ke Roof Panel, Flashing 40 x 40 mm |
|
BASE FRAME |

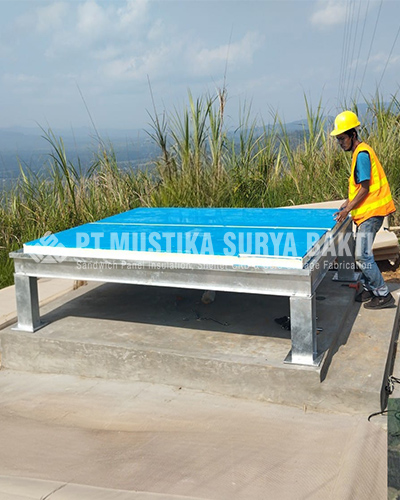

Bottom Side IWF, 150.75,7mm Bottom End IWF, 150.75.7mm MIdle End IWF, 50.75.7mm Cross Member, UNP 100.50.5mm Wall Guide, Siku 40.40.4mm Floor Support, Siku 40.40.4mm Pedestal, H Beam 150mm
|
|
ADDITIONAL ROOF |
Corugated Zyncalum Sheet 0.45mm, Lebar 760mm Reinforcement, Sandwich Panel Inslation, Tebal 75mm Side & Front Cover, Pre Painted Galvanized 0.45mm, Warna Broken White/White Rabbit |
|
SISTEM SIRKULASI UDARA |
Exhaust Fan Ø10inch, Power AC 220 Volt Air Inlet, Model Almunium Louverd, Dimensi 600 x 400mm,dengan Insect Screen. |
