SHELTER CKD
PENULISAN

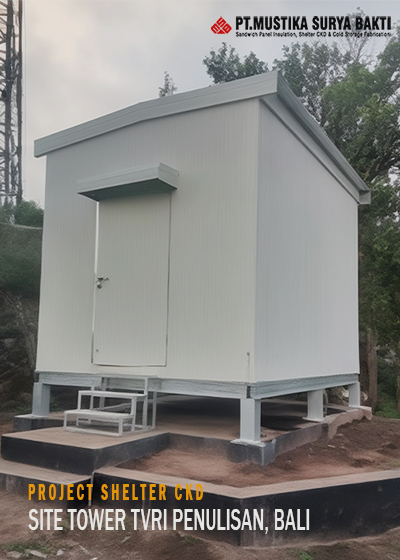

Shelter CKD Penulisan di Pulau Bali, merupakan salah satu project Telekomunikasi yang menggunakan Produk Perusahaan kami
SHELTER CKD PENULISAN BALI
Tanggal Project
Jenis Project
Lokasi Project
Tipe Shelter
Jenis Ruang
Dimensi dalam
Dimensi luar
Base Frame
: 30 Juli 2025
: Project Telekomunikasi
: Tower TVRI Penulisan, Bali
: Single Room
: Shelter CKD Type SSR – 4 x 3 x 3 – BFP
: Panjang 4.000 x Lebar 3.000 x Tinggi 3.000 mm.
: Panjang 4.150 x Lebar 3.150 x Tinggi 3.150mm
: Base Frame IWF.150.75mm
Pedestal HBeam 150mm
Finishing Hot Deep Galvanized
Joint Sistem, Baut & Mur Galvanized Ø12x 50 mm
dikerjakan oleh Team installer kami yang mempunyai kemampuan dan skill tinggi dalam bidang pemasangan unit Shelter CKD.
TECHNICAL DATA
| Nama Item | Keterangan |
|---|---|
|
Shelter Type |
Shelter CKD Type SSR – 4 x 3 x 3 – BFP |
|
Jenis Ruangan |
Single Room |
|
Ukuran Ruangan |
Inner : P.4000 x L.3000 x T.3000mm Outter : P.4150 x T. 3150 x T.3150mm |
|
Wall & Roof Panel Insulation |
Tebal 75mm Kulit luar Pre painted Galvanaized 0.45mm warna Broken White/White Rabit Kulit bagian dalam, Pre painted Galvanized 0,45 mm, warna Broken Whit/White Rabbit Insulation Rigid Polyurtehane Foam, density 40 ~ 45Kg/m³ Surface Profil, Corugated interval 80m depth 3mm Pelindung Anti Gores, Blue / Protective Plastic film |
|
Floor Panel Insulation |
Tebal 75mm Kulit luar Pre painted Galvanaized 0.45mm warna Broken White/White Rabit Kulit bagian dalam, Pre painted Galvanized 0,45 mm, warna Broken Whit/White Rabbit Insulation Rigid Polyurtehane Foam, density 40 ~ 45Kg/m³ Pelindung Anti Gores, Blue / Protective Plastic Surface Profil, Flat Reinforcement, Multiplex 12 mm Surface Finishing, Vinyl Tile Maxwell 300 x 300mm |
|
Pintu |
Dimensi P.2000x L.1000 x T.40mm Model Right Swing Door Kulit luar & dalam Pre Painted Galvanized 0,45mm, warna broken white/Rabbit white Insulation, Rigid Polyurethane foam Density 40 – 45 Kg/m³ Engsel, Stainless Steel Model Kupu kupu Handle, stainless steel, Merk Solid atau setara |
|
Sistem Sambungan |
Rotary Metal Cam Lock |
|
Base Frame |
Bottom Side, UNP 100.50.5mm Bottom End, UNP 100.50.5mm Midle Frame, UNP 100.50.5mm Cross member, UNP 100.50.5mm Wall Guide, Siku 40.40.4mm Floor Support, Siku 40.40.4mm Pedestal H Beam 150.150mm Joint Sistem, Mur & Baut Ø10 x 45mm Finishing, Hot Deep Galvanized |
