SHELTER CKD
INDRALAYA

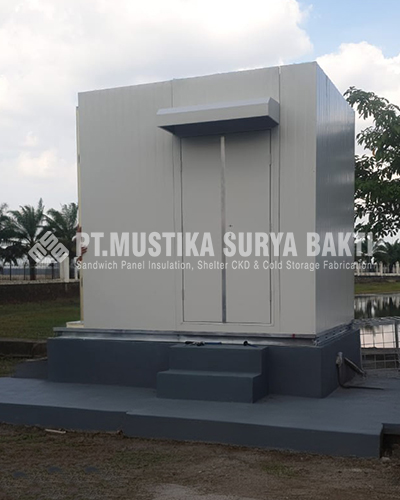

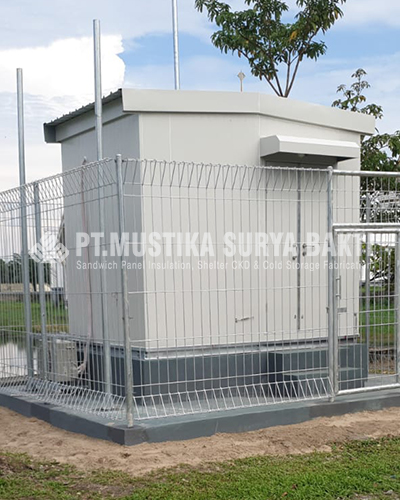

Shelter CKD Indralaya
Tanggal Project
Jenis Project
Lokasi
Type Shelter
End User
Dimensi(Inner)
Base Frame
: 13 September 2024
: Air Quality Monitoring System (AQMS)
: Indralaya.Kab.Ogan ilir,Sumatera Selatan
: SHELTER CKD TYPE SSR – 3 x 2 x 2.75 – BF
: KEMENTERIAN LINGKUNGAN HIDUP & KEHUTANAN
: P.3000 x L.2000 x T.2750 mm
: Base Frame UNP 100.50.5mm

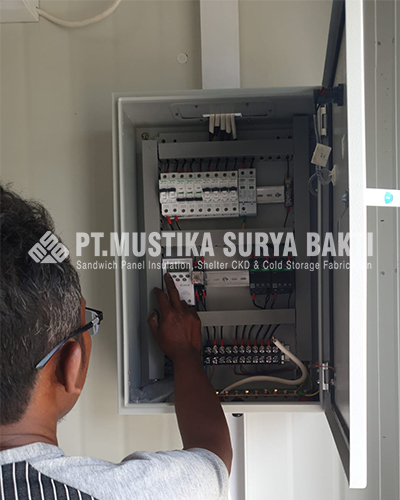

Dalam project Shelter CKD Indralaya ini kami mensuply unit Shelter CKD,Pengiriman dan pemasangan unit Shelter CKD, termasuk dengan pekerjaan Civil, Mechanical dan elctrical untuk menunjang
GENERAL SPESIFIKASI
| NAMA ITEM | KETERANGAN |
|---|---|
|
SHELTER TYPE |
SHELTER CKD TYPE SSR – 3 x 2 x 2.75 – BF |
|
JENIS RUANGAN |
SIngle Room |
|
UKURAN RUANGAN |
Outter : P.3150 x L.2150 x T.2750 mm Inner : P.3000 x T.2000 x T.2600 mm |
|
WALL & ROOF PANEL INSULATION |
Sandwich Panel Insulation, Tebal 75m Kulit Luar & Dalam ,Pre Painted Galvanized tebal 0.45mm, warna Rabbit White/Broken White Insulation, Rigid Polyurthane Foam Density 40 ~ 45Kg/m³ Surface Profile, Corugated Interval 80mm, Depth 3mm Pelindung Anti Gores, Blue Protective Film |
|
FLOOR PANEL INSULATION |
Sandwich Panel Insulation, Tebal 75m Kulit Luar & Dalam, Pre Painted Galvanized tebal 0.45mm, warna Rabbit White/Broken White Insulation, Rigid Polyurthane Foam Density 40 ~ 45Kg/m³ Reinforcement, Multiplex tebal 12 mm Surface Profile, Flat Surface Finsihing, Vinyl Tile Maxwell 300 x 300mm Pelindung Anti Gores, Blue Protective Film |
|
PINTU |
Model Pintu, Double Swing Door Dimensi Daun Pintu, P.2000 x L.1000 x T.40mm Kulit Bagian Luar& Dalam , Pre Painted Galvanized tebal 0,45mm, Warna Rabbit White/Broken White. Pelindung Anti Gores, Blue Protective Film. Engsel,Stainless Steel Model Kupu – Kupu. Handle, Stainless Steel, Merk Solid atau Setara |
|
SISTEM SAMBUNGAN |
Wall Panel ke Wall Panel Insulation, Rotary Metal Cam Lock Roof Panel ke Roof Panel, Rotary Metal Cam Lock Floor Panel ke Floor Panel, Rotary Metal Cam Lock Wall Panel Ke Roof Panel, Flashing 40 x 40 mm Wall Panel ke Floor Panel, Flashing 40 x 40 mm |
|
BASE FRAME |
Bottom Side, UNP.100.50.5mm Bottom End, UNP 100.50.5mm Midle Frame, UNP 100.50.5mm Cross Member, UNP 100.50.5mm Wall Guide, Siku 40.40.4mm Floor Support, Siku 40.40.4mm Joint Sistem, Mur & Baut Hot Deep Galvanized Ø M12 x 45mm. Finishing, Hot Deep Galvanized |
|
ADDITIONAL ROOF |
Roof Sheet, Corugated Zyncalum sheet AZ 80, lebar 760mm Midle Reinforcement, Pre painted galvanized 0.45mm, profile Omega Side Reinforcement, Pre Painted Galvanized 0.45 mm |
